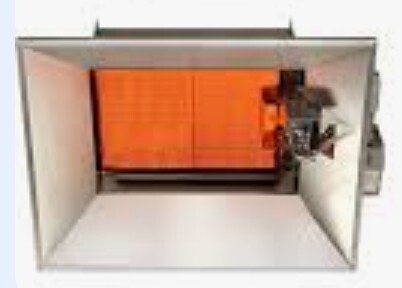

SGM3-L1 LP Gas 26,000 BTUH Millivolt Self Generated Power 44012020

$586.00

SKU:

44012020

Weight:

30.00 LBS

Availability:

CUSTOM PRODUCT SHIPS IN 2-4 WEEKS

Shipping:

Free Shipping

Quantity:

Product Description

Capacities from 26,000 to 104,000 Btu/hr
Does not require external electrical power to operate
Millivolt standing pilot operation with 100% gas shut-off safety control
Aluminized steel construction
Aluminum reflectors
Compact size for UPS shipping
Suitable for horizontal or angle mount up to 30°
Natural or propane gas
Indirect vented operation
Protective radiant screen included
Optional reflector extensions available
CSA design certified
Manual Ignition (light)
Requires 750 mV thermostat (part #42489010 for proper operation, one per heater is required
Millivolt Thermostat, to be used with Millivolt (SGM Series) Ceramic

Weights & Dimensions

Length	20 in
Width	16-3/4 in
Height	9-3/4 in
Weight	30 lbs
Min Mounting Height	12 ft
Burner Pressure	6 in
Clearance to Combustibles Bottom	Horizontally (Standard Reflector 48 & Extension 126) in
Gas Inlet Pressure Max Water Column	14 in

Product Details
