SPS75-20-TG L5 LP Gas Single Stage SS/ALC Model 22' Long 75K BTUH , Spaceray

Product Description

Other Features Of The SPS/U SS Series With ALC Option

As standard, the SPS/U SS series burner boxes are supplied with heavy duty high temperature silicone gaskets. All compartment doors, edges and access panels have individual gaskets.

All burner boxes are totally enclosed, stainless steel.

All components are tested in accordance to ASTM B58 and have passed all corrosion tests.

As standard, gas appliance manufacturers use brass electrical connectors which are susceptible to ammonia as well as susceptible to stress corrosion and cracks. All SPS/U SS burner electrical connectors are insulated and are manufactured from tin plated phosphor bronze alloy for trouble free operation in harsh environments (including poultry houses, waste treatment plants and car washes).

Sunstar recommends highly efficient polished aluminum reflectors with reflectivity rating of 97.5% in car wash applications. As an option, Sunstar can provide polished stainless steel reflectors with a reflectivity rating of 80% (stainless steel absorbs radiant energy rather than reflecting it) if requested.

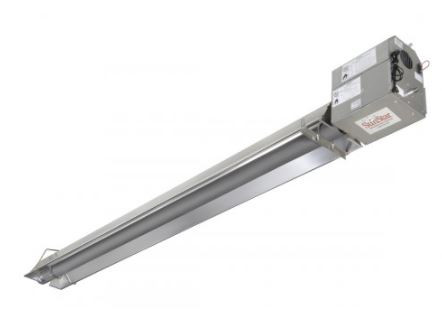

Sunstar SPS-TG Series Single Stage Garage Heater Model SPS75-20-TG L5 LP Gas 75,000 BTUH

Heat Treated Aluminized Steel Emitter Tubes and Construction for High Humidity and Corrosive Environments Sealed Box

SPS / SPU TG Models include SS/ALC option

TISS Included

SPS Supply Requirements

Gas Type	Burner Pressure	Supply Pressure		Voltage	Amps	Ignition Type
Gas Type	Burner Pressure	Min	Max	Voltage	Amps	Ignition Type
Natural	3.5" W.C.	5" W.C.	14" W.C.	120 VAC 60 Hz	2.4	Direct Spark
Propane	10" W.C.	11" W.C.	14" W.C.	120 VAC 60 Hz	2.4	Direct Spark

Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need…and all at a comfortable price.

Natural Gas N5 or LP Gas L5 TG Tuff Guy

SunStar’s patent pending innovative safety feature for positive pressure radiant tube heaters is called the “Tube Integrity Safety System” (TISS™).

In the unlikely event of a tube failure, TISS™ has been designed to automatically shut off the heater. The revolutionary TISS™ uses a simple principle to place an electrically insulated aluminum wire in tension above the reflector. Low voltage is then continuously passed along the wire in line with the gas control circuit. If heat levels increase due to heat exchanger failure, the wire melts and the safety circuit is broken, breaking the 24 volt circuit and shutting down the heater.
