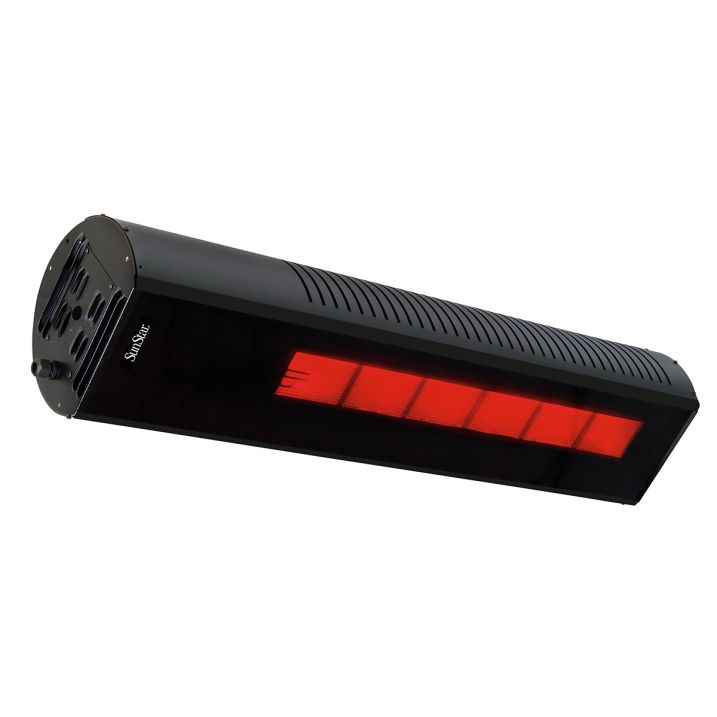

SunStar SGL50-N7 2 Stage Glass Series Patio Heater LP Gas (SGL50-L7) Spaceray

Product Description

Designed for restaurants, residential patios and other hospitality service industries, SunStar GLASS is wind resistant up to 40MPH.
High temperature tinted glass provides additional protection on windy days and enhances heater’s aesthetic appeal.
The SunStar GLASS radiant patio heater is ideal for outdoor or partially covered dining areas, bars, patios, verandas, smoking areas, vestibules and other outdoor areas.
Can be mounted from horizontal position to 60°.
Clearances above can be as low as 10” with optional heat shield
Covers 12’ by 12’ area with minimal wind conditions.

Model	Gas Type	Input BTU/HR	Height	Width	Length
SGL35-L7/L10	Propane	35,000-24,000	9 1/2″	11 1/2″	48″
SGL35-N7/N10	Natural Gas	35,000-24,000	9 1/2″	11 1/2″	48″
SGL50 – N7/ N10*	Natural Gas	50,000-34,000	9 1/2″	11 1/2″	48″
SGL50 – L7/ L10*	Propane	50,000-34,000	9 1/2″	11 1/2″	48″

N10* includes remote

Mounting Angle	Ceiling	Ceiling* w/Shield	Back	Back* w/Shield	Side	End	Below	Front
0º	20″	10″	N/A	N/A	24″	12″	40″	48″
30º	23″	14″	8″	8″	24″	12″	40″	48″
60º	24″	17″	12″	12″	24″	12″	40″	48″
