Thermazone Thin®

Product Description

Key specifications

THERMAZONE THIN
Thermazone Thin® is available with an 18” or 36”
heating surface. The heating element is a flat panel
IR emitter, which is able to be “cycled” for
increased energy efficiency. All Thermazone Thin®
heaters are UL rated for outdoor use under cover,
and come supplied with a rear mounted junction
box. The mounting bracket, included, is designed
for ceiling or wall mounted locations, and is
predesigned for pivoting to safely hang at an angle.

STAINLESS
BLACK

Optional Stainless Grid TZ Models Only

Manufacturer: BBC Industries (also known as Black Body Corporation).
Heating element: A flat panel infrared (IR) emitter.

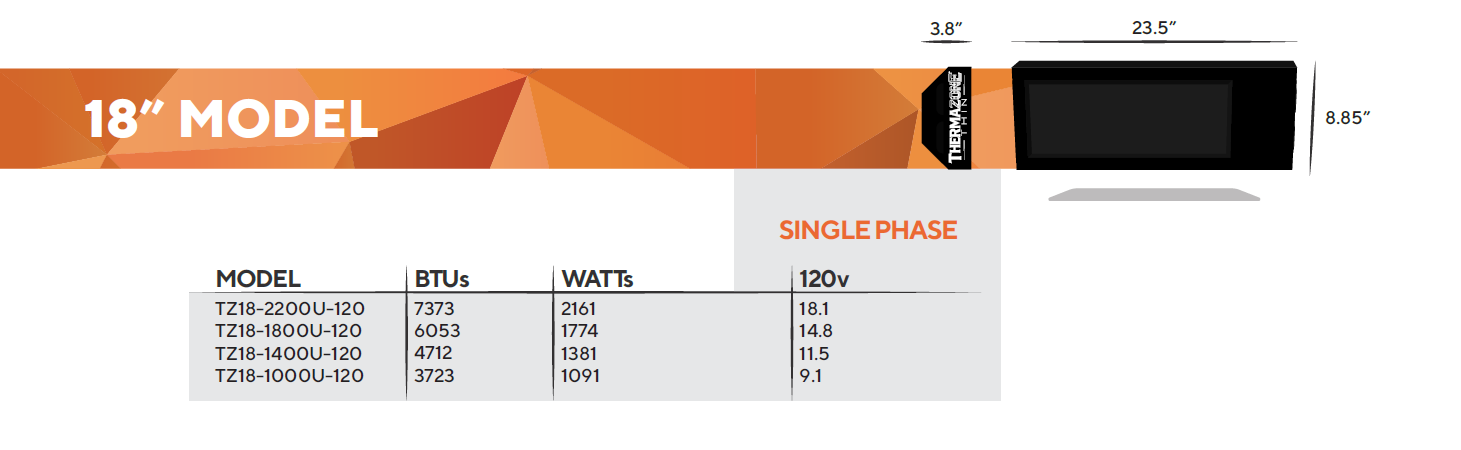

Size: The 18-inch version has an 18" heating surface, which is controlled by cycling the element to regulate temperature. The overall dimensions are approximately 12" tall and 5.5" deep.
Efficiency: 95% efficient.
Construction: Heavy-duty, encased in aluminized steel.
Installation:
- Designed for simple, inexpensive wall or ceiling mounting.
- Mounting brackets are included for pivoting the heater at an angle.
Key features:
- Maintenance-free: No moving parts, reflectors, or bulbs to clean or replace.
- Safe and clean: Provides heat without producing noxious gases or flames.
- Zoned heating: Can be arranged and controlled in zones for efficient, flexible heating.
- No glare: The black face of the heater does not emit a bright orange glow.
Applications:
- Workshops and garages
- Warehouses and factories
- Hot yoga studios
- Restaurants and patios
